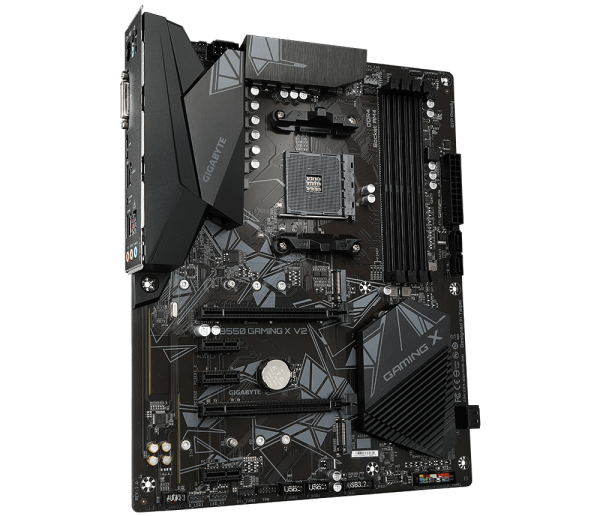

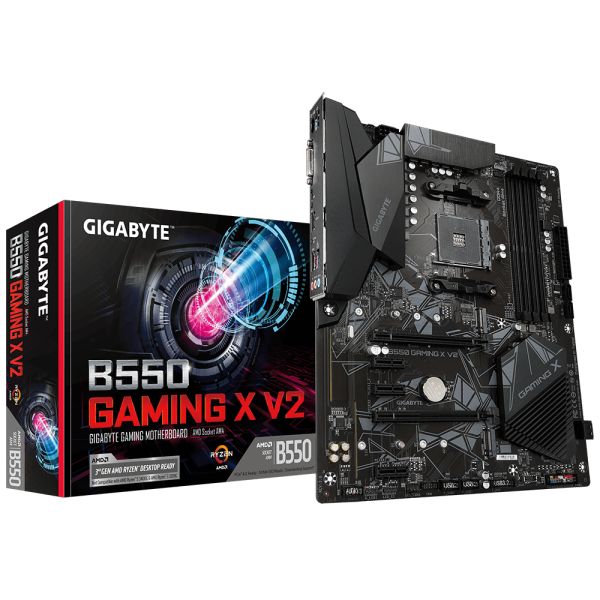

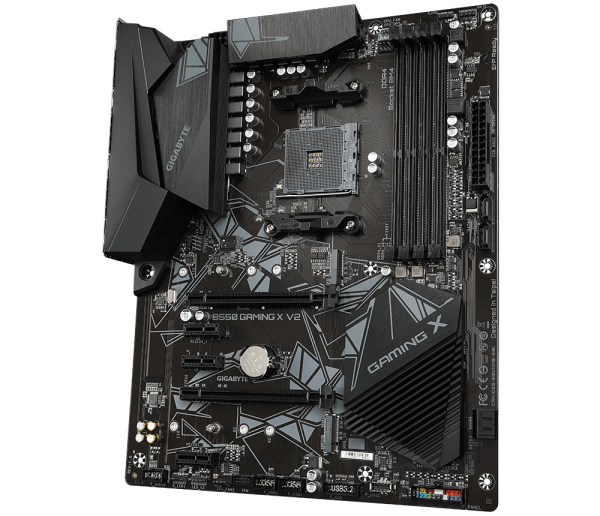

Matična ploča AM4 Gigabyte B550 GAMING X V2 HDMI/DVI/M.2

Matična ploča AM4 Gigabyte B550 GAMING X V2 HDMI/DVI/M.2

Gigabyte
Šifra: 1614
  • Proizvod iz grupe: AMD
  • Proizvođač: Gigabyte
  • Dostupna količina: 1
Maloprodajna cena: 15.349,00 rsd.
*
Za odloženo plaćanje
*
Cene su sa PDV-om
WebCena: 14.099,00 rsd.
*
Cena za gotovinu, pouzećem ili kartice jednokratno.
Popust: 1.279,00 rsd.
 Količina
  • CPU
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC memory (ECC mode) support varies by CPU
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    1. Supporting PCIe 3.0 x2 mode
    3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    Chipset:
    1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2. 3 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 3 x USB 3.2 Gen 1 ports
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm

Tip procesora: AMD
Podnožje: AMD® AM4
Čipset: AMD® B550
Format ploče: ATX
Podržana memorija: DDR4
Podržani procesori: - AMD podnožje AM4, podržava: AMD Ryzen 5000 Series / 3rd Gen Ryzen i 3rd Gen Ryzen sa Radeon grafičkim procesorima
Memorija: - 4 x DDR4 DIMM podnožje podržava do 128 GB (32 GB single DIMM capacity) sistemske memorije AMD Ryzen 5000 serija procesora: - Podržava DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memorijske module 3rd Gen AMD Ryzen Procesore: - Podržava DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memorijske module 3rd Gen AMD Ryzen sa Radeon grafičkim procesorima: - Podržava DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memorijske module - Dual channel memory architecture - Podržava ECC Un-buffered DIMM 1Rx8/2Rx8 memorijske module - Podržava non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memorijske module - Podržava Extreme Memory Profile (XMP) memorijske module
Integrisana grafička karta: Integrisano u 3rd Generation AMD Ryzen sa Radeon grafičkim procesorima: - 1 x DVI-D port, podržava maksimalnu rezoluciju od 1920x1200 @60 Hz - DVI-D port ne podržava D-Sub konekciju putem adaptera - 1 x HDMI port, podržava maksimalnu rezoluciju od 4096x2160 @60 Hz - Podržava HDMI 2.1 verziju, HDCP 2.3, i HDR. - Maksimalna deljena memorija 16 GB
Slotovi za proširenje: 1‎ x PCI Express x16 slot (PCIEX16), integrisan u CPU: - 3rd Generation AMD Ryzen procesora podržava PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen sa Radeon grafičkim procesorima podržava PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrisan u Chipset: - Podržava PCIe 3.0 x2 mode 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrisan u Chipset: - Podržava PCIe 3.0 x1 mode
Skladište: 1‎ x M.2 konektor (M2A_CPU), integrisan u CPU, podržava podnožje 3, M key, tip 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen procesora podržava SATA i PCIe 4.0 x4/x2 SSDs - 3rd Generation AMD Ryzen sa Radeon grafičkim procesorima podržava SATA i PCIe 3.0 x4/x2 SSDs 1 x M.2 konektor (M2B_SB), integrisan u Chipset, podržava podnožje 3, M key, tip 2242/2260/2280/22110 SSDs: - Podržava SATA i PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s konektora, integrisana Chipset: - Podržava RAID 0, RAID 1, i RAID 10
Mrežna karta: - Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Zvučna karta: - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel
USB: Chipset: - 1 x USB 3.2 Gen 2 Type-A port (crveni) na zadnjem panelu - 3 x USB 3.2 Gen 1 porta na zadnjem panelu Chipset: - 1 x USB Type-C port sa USB 3.2 Gen 1 podrškom, dostupno putem internog USB priključka - 2 x USB 3.2 Gen 1 porta dostupna putem internog USB priključka - 6 x USB 2.0/1.1 portova (2 porta na zadnjem panelu, 4 porta dostupna putem internih USB priključaka)
Konektori na zadnjoj strani: - 2 x USB 2.0/1.1 ports - 1 x PS/2 keyboard/mouse port - 1 x DVI-D port - 1 x HDMI port - 3 x USB 3.2 Gen 1 porta - 1 x USB 3.2 Gen 2 Type-A port (crveni) - 1 x Q-Flash Plus button - 1 x RJ-45 port - 3 x audio jacks
Interni konektori: - 1 x 24-pin ATX glavni konketor za napajanje - 1 x 8-pin ATX 12V konketor za napajanje - 1 x CPU fan header - 1 x water cooling CPU fan header - 3 x system fan headers - 2 x addressable LED strip headers - 2 x RGB LED strip headers - 1 x CPU cooler LED strip/RGB LED strip header - 2 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB Type-C port, sa USB 3.2 Gen 1 podrškom - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header (2x6 pin, samo za GC-TPM2.0_S module) - 1 x Clear CMOS jumper
BIOS: - 1 x 256 Mbit flash - Licencirani AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Garancija: 2 godine
EAN: 4719331810702
