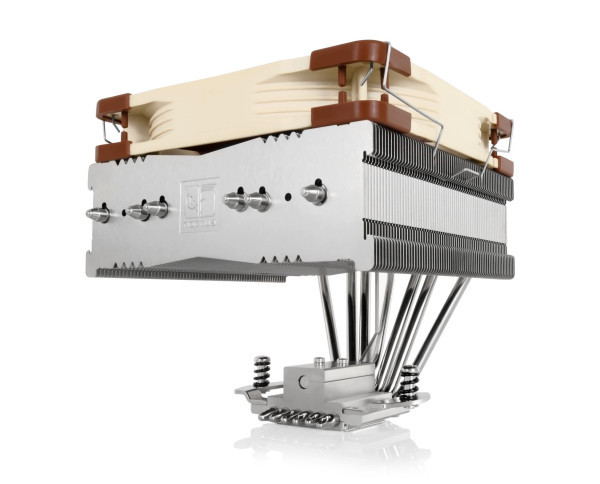

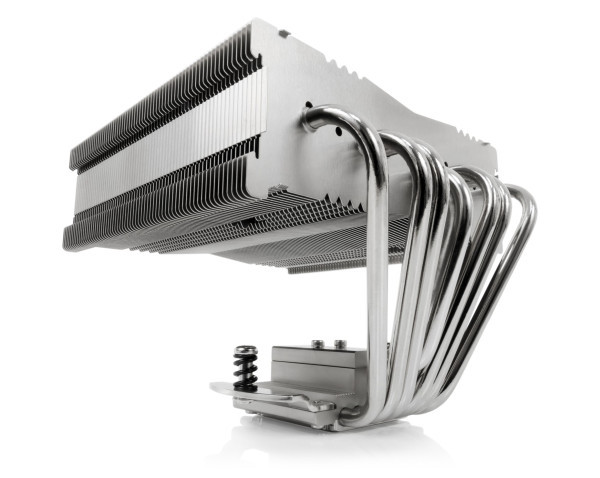

Cooler Specification
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q3 2021. For older coolers, please refer to this chart.)
(Current socket compatibility applies to all coolers purchased since Q3 2021. For older coolers, please refer to this chart.)
Height (without fan)
115 mm
Width (without fan)
140 mm
Depth (without fan)
163 mm
Height (with fan)
115 / 142 mm
Width (with fan)
140 mm
Depth (with fan)
163 mm
Weight (with fan)
1015 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
119
Max. TDP
see NSPR
Fan compatibility
140x140x25mm (with square frame)

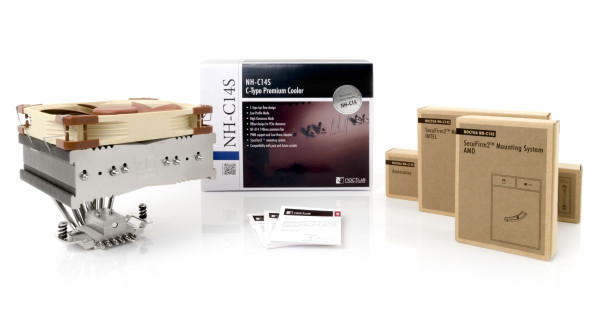

Scope of delivery
- 1x NF-A14 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- Fan clips for second fan
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
140,2 m³/h
115,5 m³/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
